TP-Link ER7206 OMADA VPN router (1xSFP LAN/WAN,1xGbEWAN,4xGbELAN,USB3.0)
Popis a parametry
TP-Link ER7206 OMADA VPN router (1xSFP LAN/WAN,1xGbEWAN,4xGbELAN,USB3.0)

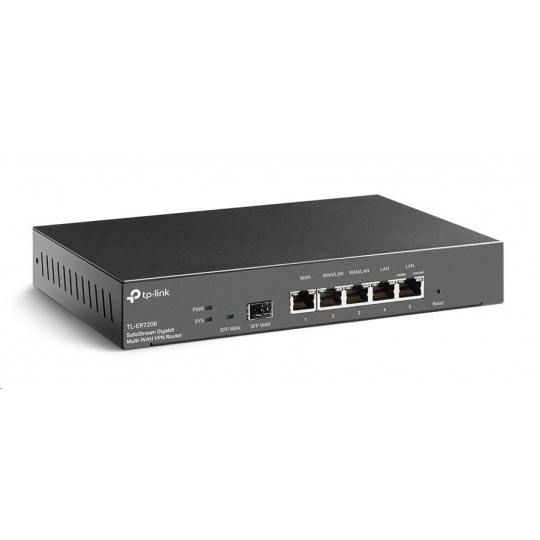

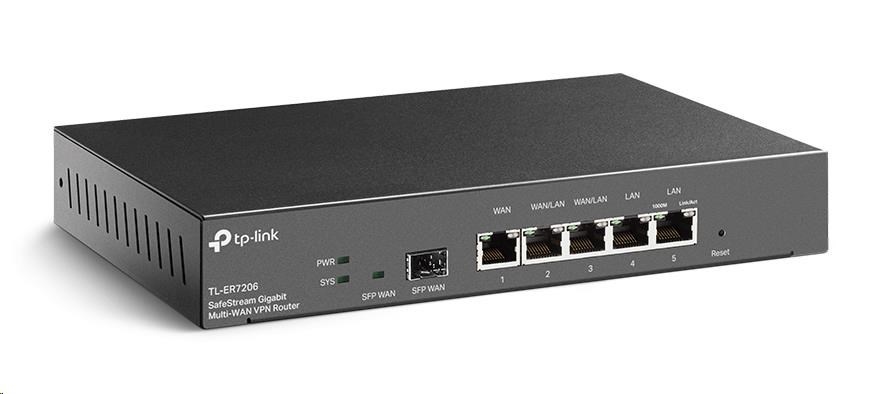

TP-Link ER7206
Gigabitový VPN router Omada
- Integrováno do platformy Omada SDN - Funkce ZTP (Zero-Touch Provisioning), centralizovaná cloudová správa a inteligentní monitorování.

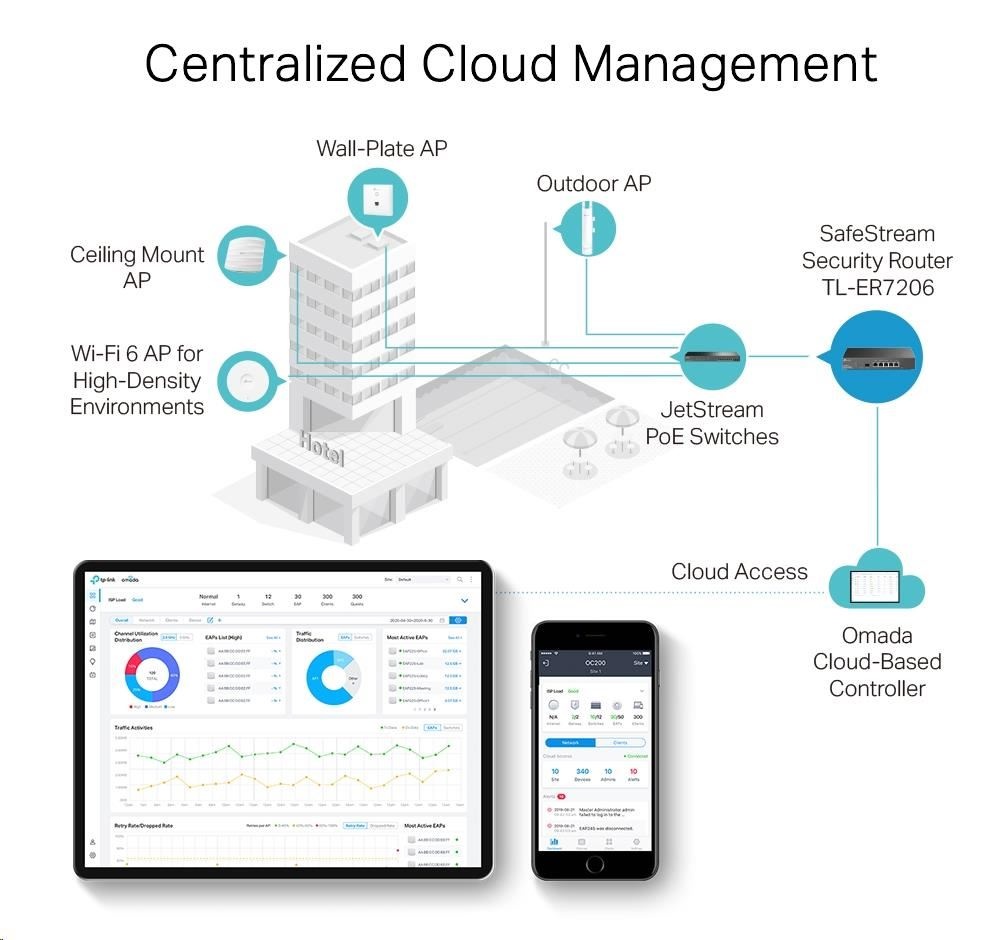

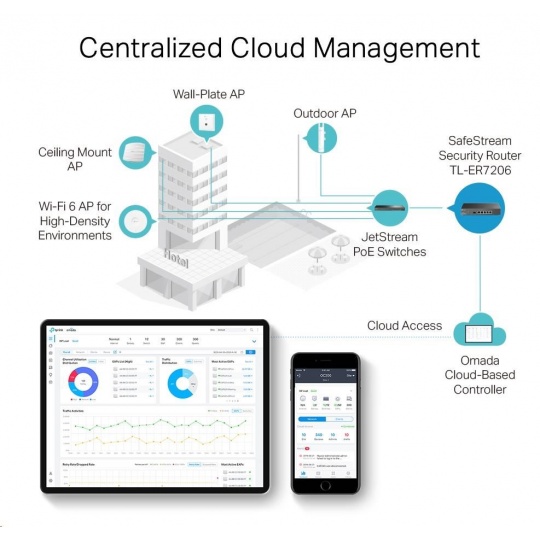

- Centralizovaná správa - Cloudový přístup a aplikace Omada pro maximální pohodlí a snadnou správu.
- Gigabitové porty - 1 gigabitový port SFP a 5 gigabitových portů RJ45 poskytují vysokorychlostní kabelové připojení.

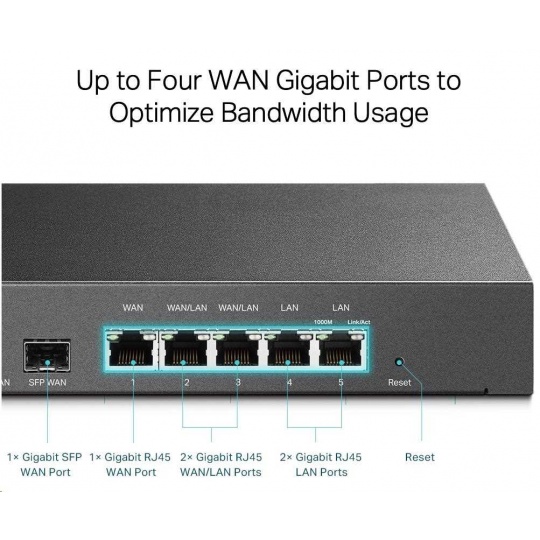

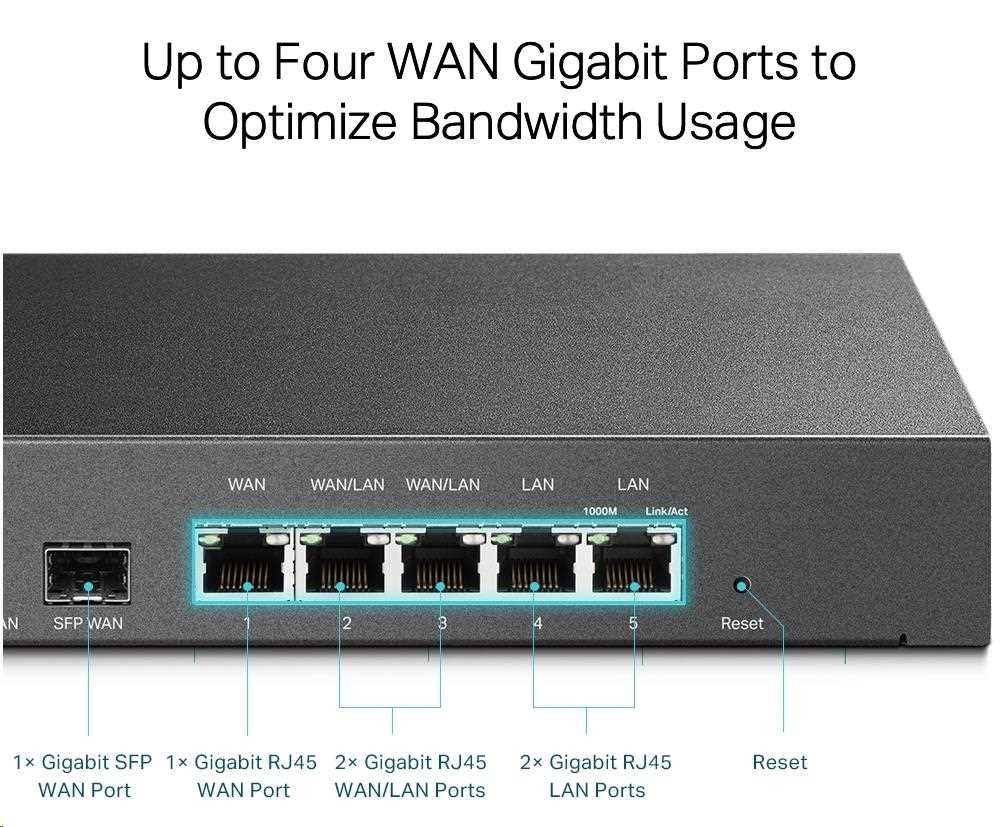

- Až 5 portů WAN - 1 gigabitový SFP WAN port a až 4 gigabitové RJ45 WAN porty optimalizují využití šířky pásma.

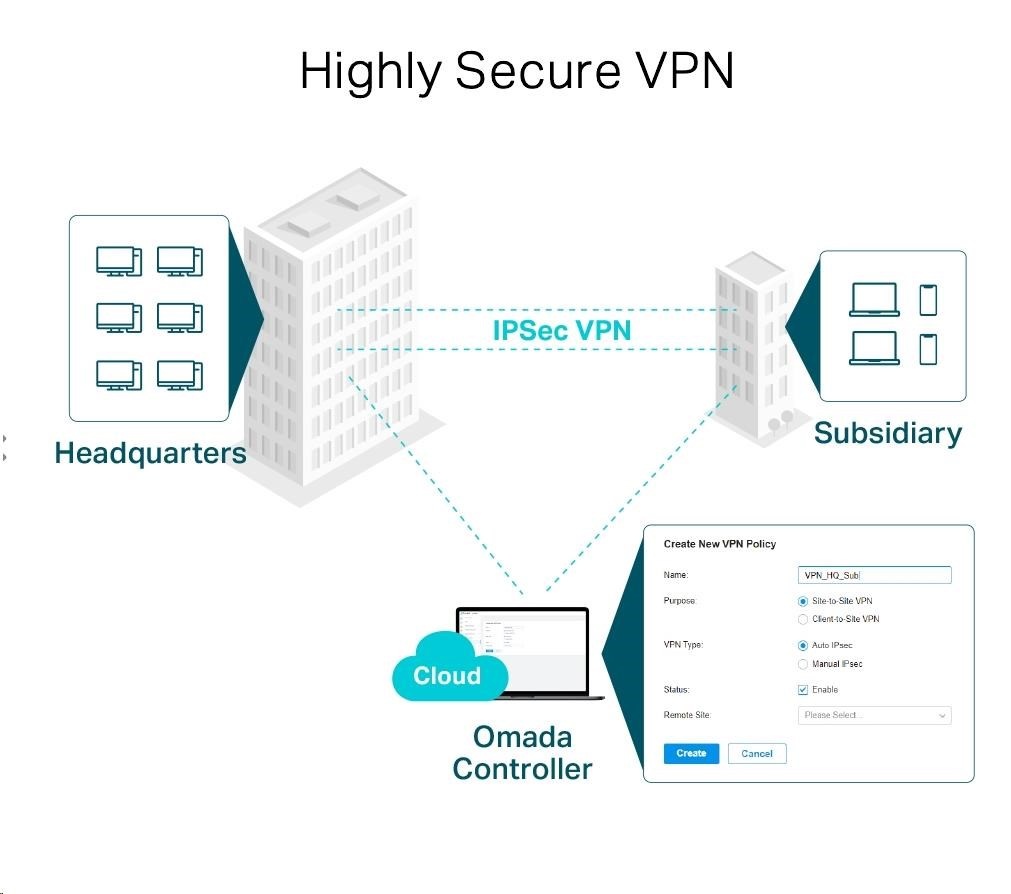

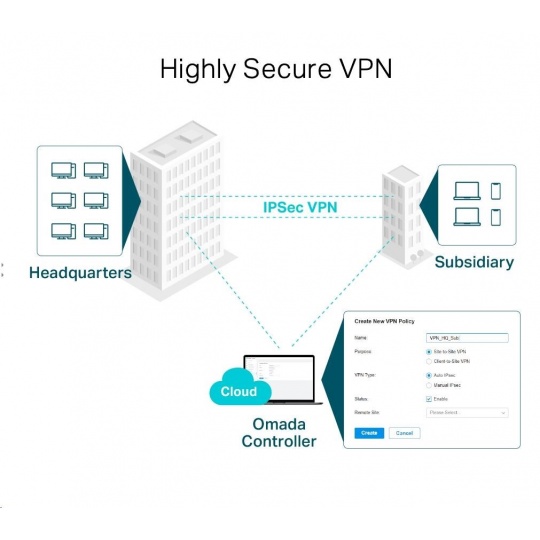

- VPN s vysokým zabezpečením - Podporuje několik VPN protokolů včetně SSL / Wireguard / OpenVPN/ IPSec / GRE VPN§/ PPTP/ L2TP/ L2TP over IPSec, které pomáhají uživatelům flexibilněji sestavit VPN připojení

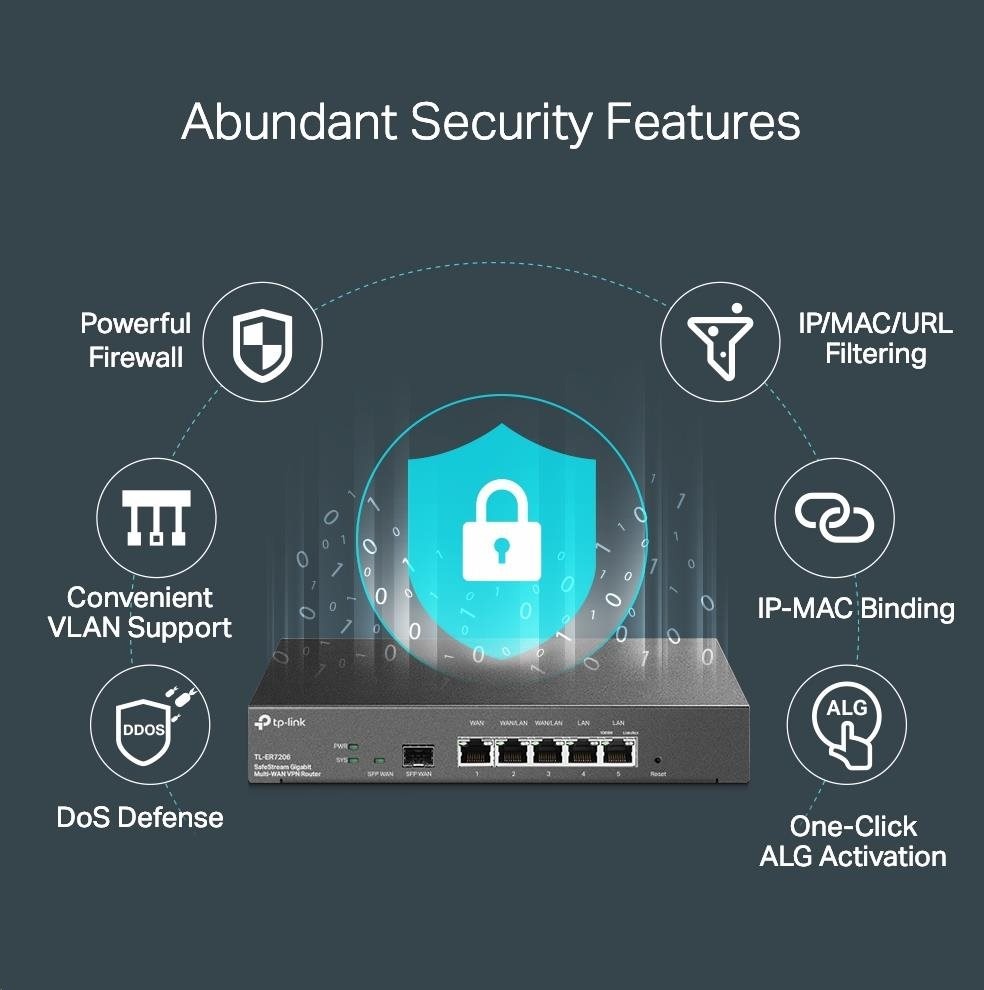

- Mnoho funkcí zabezpečení - Pokročilé zásady firewallu, ochrana proti útokům DoS, filtrování adres IP/MAC/URL a další bezpečnostní funkce na ochranu vaší sítě a dat.
Stránky produktu: https://www.tp-link.com/cz/business-networking/vpn-router/er7206/
Technické specifikace
| SECURITY | |
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • WEB Group Filtering§ • URL Filtering • Web Security§ |
| ARP Inspection | • Sending GARP Packets§ • ARP Scanning§ • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
| HARDWARE FEATURES | |
| Standards and Protocols | • IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q • TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, OpenVPN, WireGuard VPN, GRE VPN, SNMP |
| Interface | • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports • 1 USB 3.0 Port (supports USB LTE dongle and USB storage) |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) |
| Fan Quantity | Fanless |
| Button | Reset Button |
| Power Supply | 12V DC/ 1A Power Adapter |
| PoE Budget | - |
| Flash | 128 MB NAND |
| DRAM | 512 MB DDR4 |
| LED | PWR, SYS, SFP, USB, WAN(1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) |
| Dimensions ( W x D x H ) | 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) |
| Protection | 4 kV surge protection |
| Enclosure | Steel |
| Mounting | Desktop/ Wall-Mounting |
| Max Power Consumption | • 7.5 W (with USB 3.0 connected) • 4.5 W (without USB 3.0 connected) |
| PERFORMANCE | |
| IPS Throughput | TCP: 229 Mbps; UDP: 188 Mbps |
| DPI Throughput | TCP: 933 Mbps; UDP: 927 Mbps |
| WireGuard VPN | 341.3 Mbps |
| Concurrent Session | 150,000 |
| New Sessions /Second | 5,300 |
| NAT (Static IP) | 945.3 Mbps / 940.5 Mbps |
| NAT(DHCP) | 939.6 Mbps / 940.9 Mbps |
| NAT(PPPoE) | 943.6 Mbps / 940.9 Mbps |
| NAT (L2TP) | 880.1 Mbps / 859.0 Mbps |
| NAT (PPTP) | 855.0 Mbps / 907.2 Mbps |
| 64 Byte Packet Forwarding Rate | - |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 617.1 Mbps • ESP-SHA256-AES256: 592.8 Mbps • ESP-SHA384-AES256: 592.4 Mbps • ESP-SHA512-AES256: 604.5 Mbps |
| OpenVPN | 139.1 Mbps |
| L2TP VPN Throughput | • Unencrypted: 977.4 Mbps • Encrypted: 334.6 Mbps |
| PPTP VPN Throughput | • Unencrypted: 1064.1 Mbps • Encrypted: 206.8 Mbps |
| SSL VPN Throughput | 131.6 Mbps |
| 66 Byte Packet forwarding rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,279 pps / 81,275 pps |
| BASIC FUNCTIONS | |
| WAN Connection Type | • Static IP • Dynamic IP • PPPoE(supports MRU Configuration) • PPTP • L2TP |
| MAC Clone | Modify WAN/LAN MAC Address† |
| DHCP | • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP/SLAAC/DHCPv6/PPPoE/6to4Tunnel/PassThrough/Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
| ADVANCED FUNCTIONS | |
| ACL | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | • Static Routing • Policy Routing • RIP§ • OSPF§ |
| Bandwidth Control | IP-based Bandwidth Control |
| Load Balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup (Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Port Forwarding • Port Triggering§ • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-based Session Limit |
| VPN | |
| SSL VPN | 50 Tunnels |
| IPsec VPN | • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| PPTP VPN | • PPTP VPN Server • PPTP VPN Client (10)‡ • 50 Tunnels • PPTP with MPPE Encryption |
| L2TP VPN | • L2TP VPN Server • L2TP VPN Client (10)‡ • 50 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (5)‡ • 55 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
| AUTHENTICATION | |
| Web Authentication | • No Authentication • Simple Password* • Hotspot(Local User /Voucher*/ SMS*/Radius*) • External Radius Sever • External Portal Sever* • LDAP§ |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller. |
| Service | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Maintenance | • Web Management Interface • Remote Management • Export & Import Configuration • SNMP v1/v2c/v3 • Diagnostics (Ping & Traceroute)§ • NTP Synchronize§ • Port Mirroring • CLI (only in Standalone Mode) • Syslog Support |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | • ER7206(TL-ER7206) • Power Cord • Quick Installation Guide |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10 MAC OS, NetWare, UNIX or Linux |
| Environment | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
ParametryPorovnání
Počet portů LAN
4
USB port
Ano
Gigabit ethernet
Ano
Další vlastnosti
Firewall
Další vlastnosti
Management
Další vlastnosti
VLAN
Další vlastnosti
FTP server
Další vlastnosti
Podpora IPv6
Funkce
Router
Funkce
VPN
Počet SFP portů
1
Počet portů LAN
4
Počet SFP portů
1
