Xonar U7 MKII

Xonar U7 MKII 7.1 USB sound card with headphone amplifier, 192kHz/24-bit HD sound, 114dB SNR

• True 7.1-channel, 192kHz/24-bit HD surround sound with a 114dB SNR from a compact, USB-powered device
• Integrated headphone amplifier boosts sound and reveals musical details
• Dedicated headphone and mic volume controls enable instant audio adjustments for better gaming and media streaming experiences

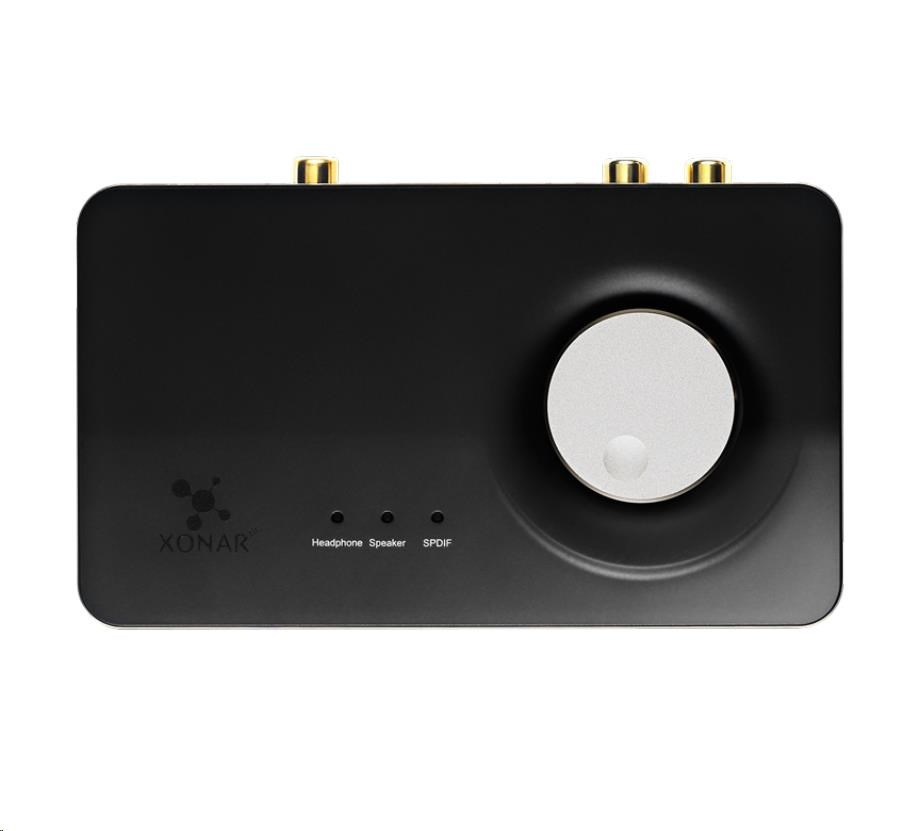

• Clickable volume control knob for convenient switching between headphone and speaker output
• Sonic Studio software suite with intuitive, single-screen interface and Sonic Radar Pro for mapping opponent locations in first-person shooters

Interface

USB

SNR(dB)

114dB

THD+N

0.0006 %(104 dB)

Headphone output power

Line output (RCA, 3.5) : 1 Vrms (2.828 Vp-p)
Headphone output : 1.3 Vrms (3.677 Vp-p)

I/O

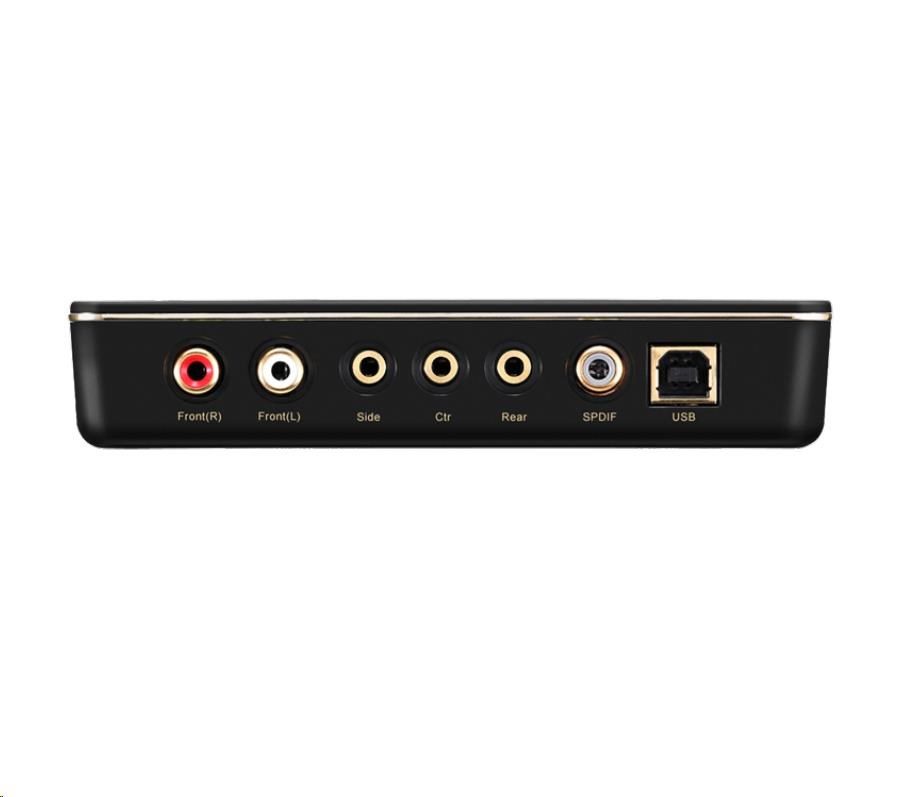

4 x 3.5 mm jack (1/8") (Headphone out /Side out/Center-Subwoofer out/Rear out)
2 x RCA (Un-Balanced)
1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
1 x S/PDIF out (1 x Coaxial)

Audio Processor

Cmedia 6632AX

D-A Converter

Cirrus Logic CS4398
Cirrus Logic CS4362

A-D Converter

Cirrus Logic CS5361

ASIO

Yes

Accessory

S/PDIF adapter x 1
Quick start guide x 1
USB cable x 1

Operation System

Windows10(32/64bit)
Windows8.1(32/64bit)
Windows7(32/64bit)
