HPE PL DL360g12 6507P (3.5G/8C) 2x32G (P69727) 2x480G MR408i-o 8SFF 2x1000W 2p10G-T NBD333 Smart Choice
Kód:
1580582615
Kód dod.:
P90003-425
EAN:
4549821664955
Záruka:
3 Rok(ů)
Výrobce:
Hewlett Packard Enterprise
Popis a parametry
HPE PL DL360g12 6507P (3.5G/8C) 2x32G (P69727) 2x480G MR408i-o 8SFF 2x1000W 2p10G-T NBD333 Smart Choice
HPE PL DL360g12 6507P (3.5G/8C) 2x32G (P69727) 2x480G MR408i-o 8SFF 2x1000W 10GbE NBD333 Smart Choice P90003-425

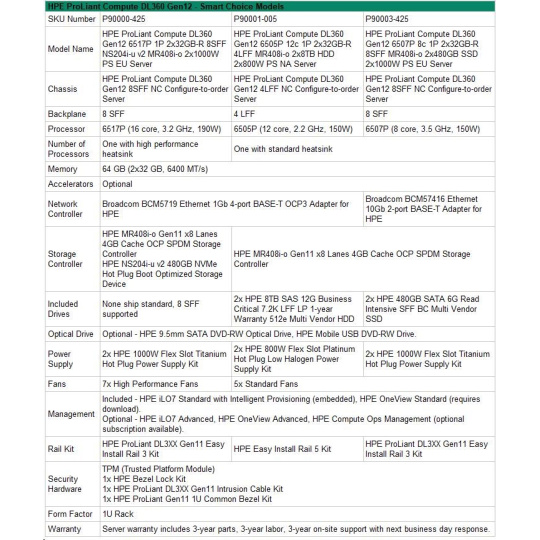

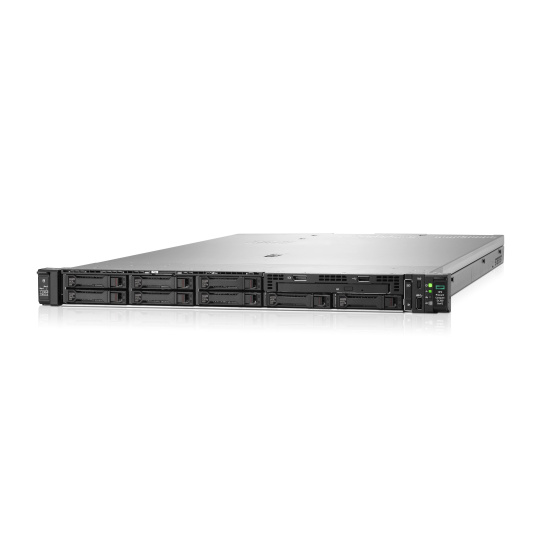

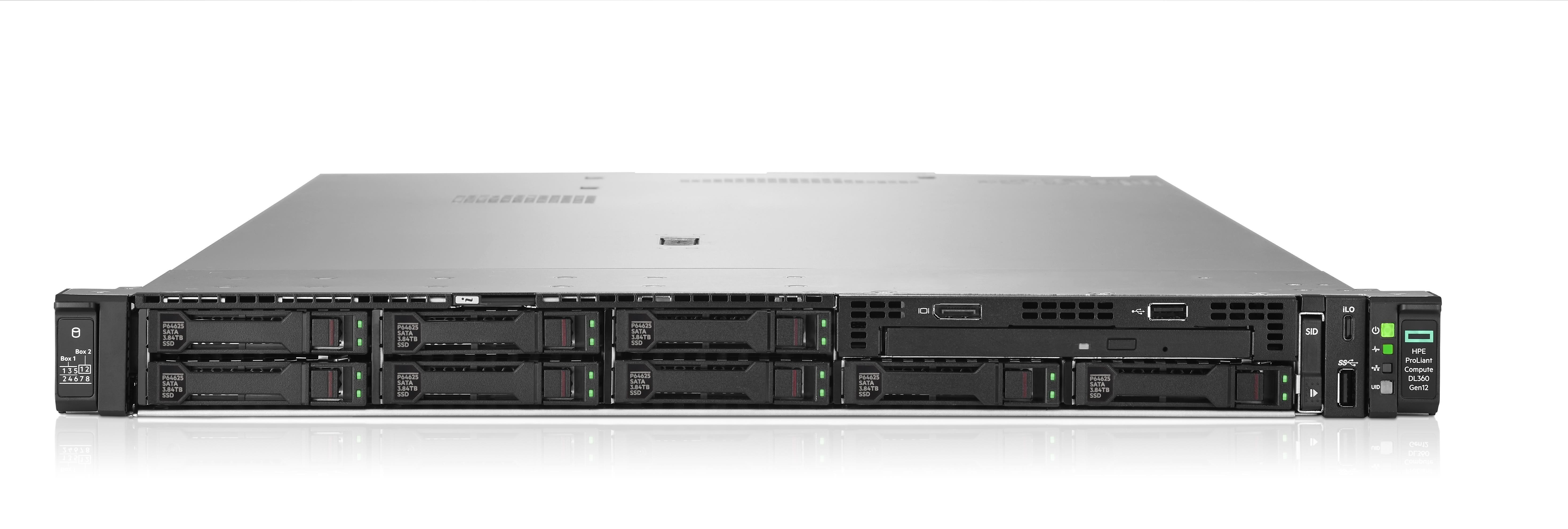

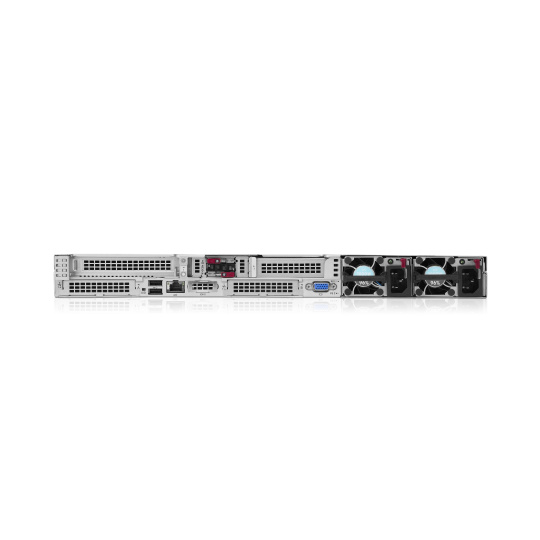

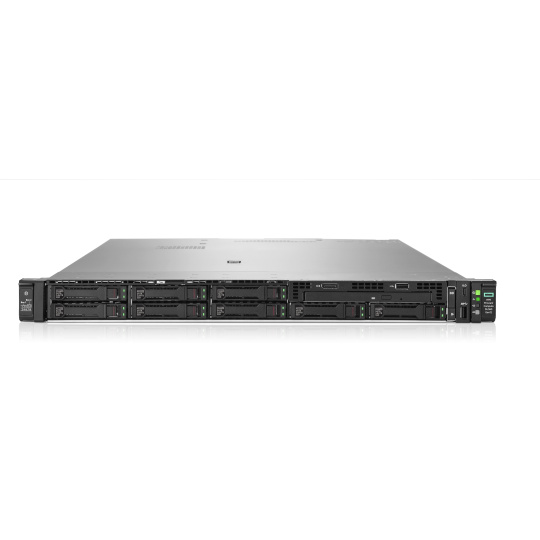

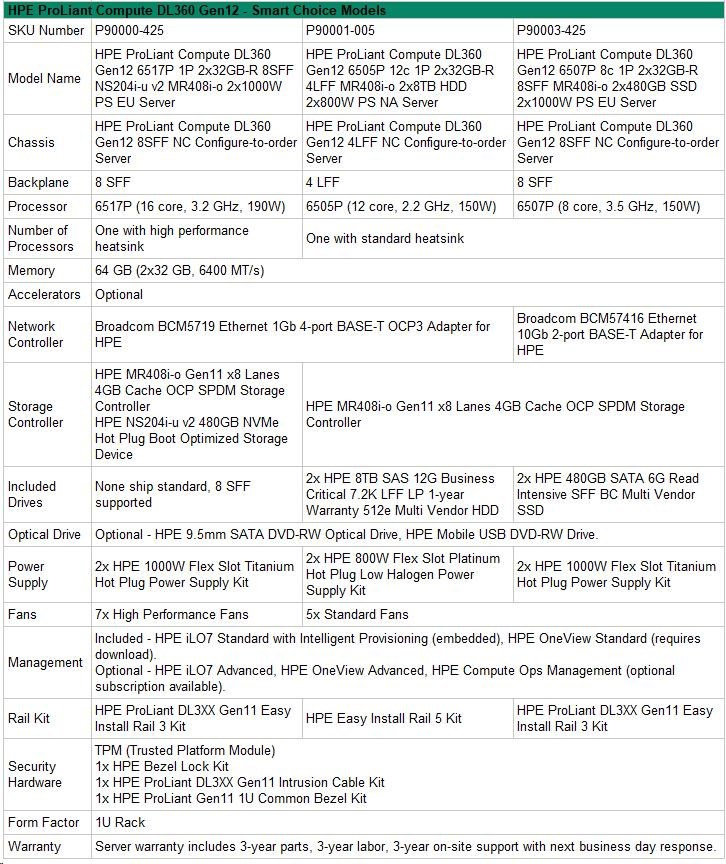

HPE ProLiant Compute DL360 Gen12 - Smart Choice Models
| HPE ProLiant Compute DL360 Gen12 - Smart Choice Models | |
|---|---|
| SKU Number | P90003-425 |
| Model Name | HPE ProLiant Compute DL360 Gen12 6507P 8c 1P 2x32GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS EU Server |
| Chassis | 8SFF NC Configure-to-order Server |
| Backplane | 8 SFF |
| Processor | 6507P (8 core, 3.5 GHz, 150W) |
| Number of Processors | One with high performance heatsink |
| Memory | 64 GB (2x32 GB, 6400 MT/s) |
| Accelerators | Optional |
| Network Controller | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE |
| Storage Controller | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Included Drives | 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Optical Drive | Optional - HPE 9.5mm SATA DVD-RW Optical Drive, HPE Mobile USB DVD-RW Drive |
| Power Supply | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Fans | 5x Standard Fans |
| Management | Included - HPE iLO7 Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO7 Advanced, HPE OneView Advanced, HPE Compute Ops Management (optional subscription available). |
| Rail Kit | HPE ProLiant DL3XX Gen11 Easy Install Rail 3 Kit |
| Security Hardware | TPM (Trusted Platform Module) 1x HPE Bezel Lock Kit 1x HPE ProLiant DL3XX Gen11 Intrusion Cable Kit 1x HPE ProLiant Gen11 1U Common Bezel Kit |
| Form Factor | 1U Rack |
| Warranty | Server warranty includes 3-year parts, 3-year labor, 3-year on-site support with next business day response. |

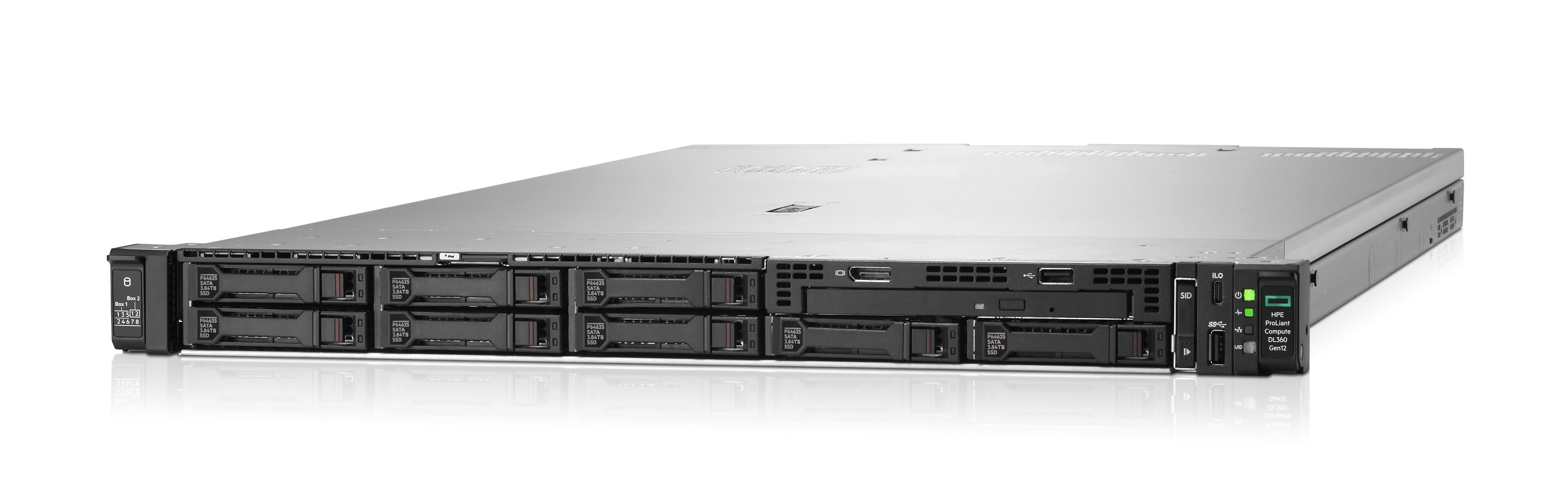

HPE ProLiant Compute DL360 Gen12
Model: 6507P 8c 1P 2x32GB-R 8SFF MR408i-o 2x480GB SSD 2x1000W PS EU

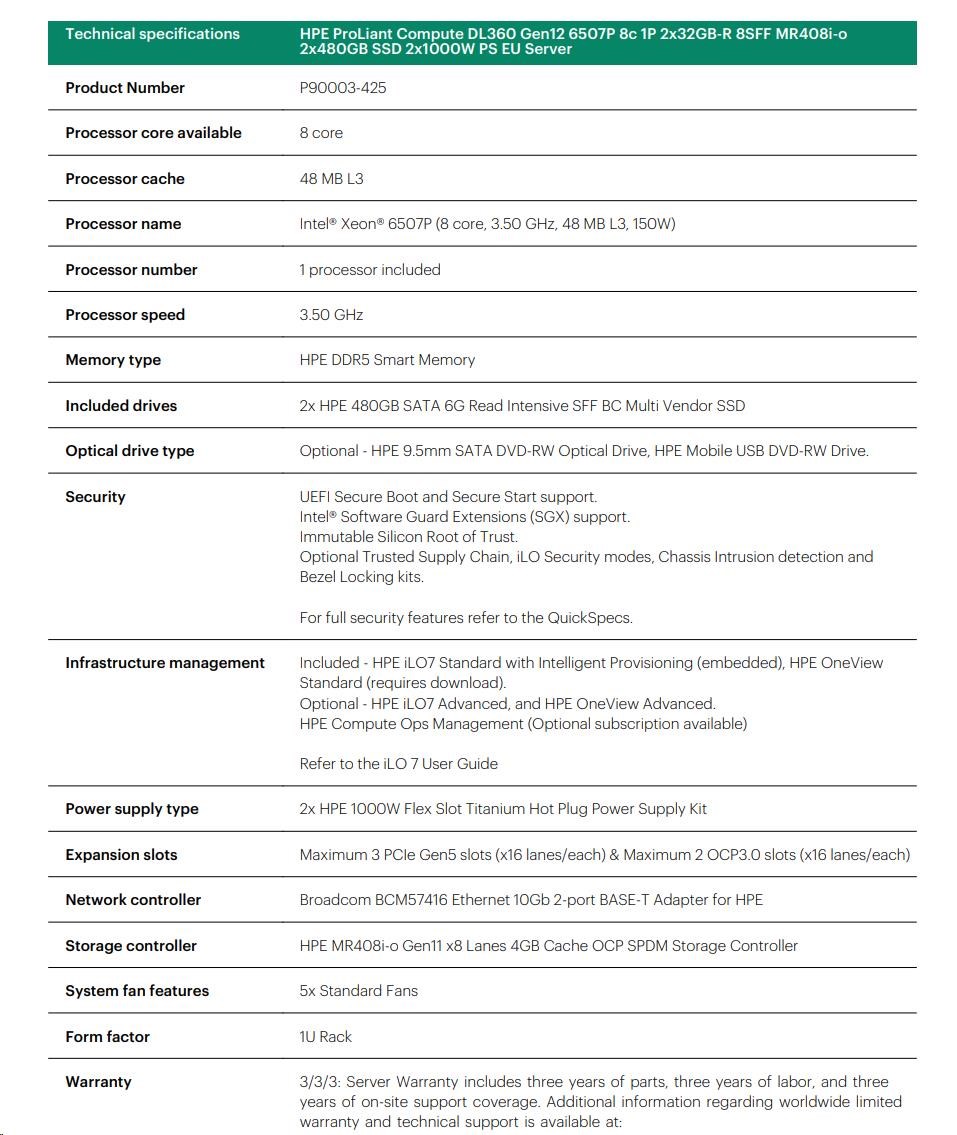

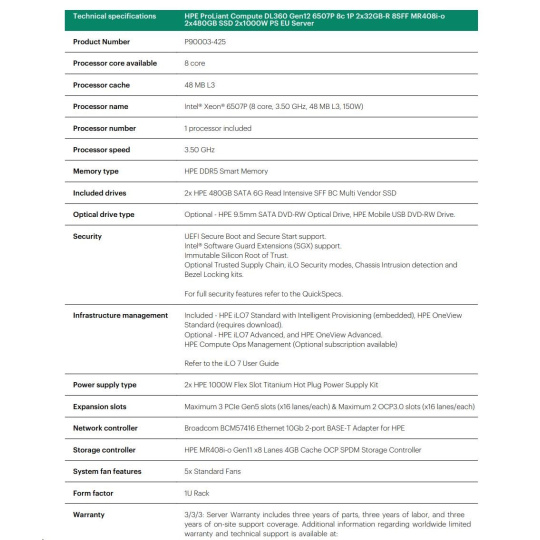

Technical Specifications
| Processor Name | Intel® Xeon® 6507P (8 core, 3.50 GHz, 48 MB L3, 150W) |
|---|---|
| Processor Cores | 8 cores |
| Processor Cache | 48 MB L3 |
| Processor Speed | 3.50 GHz |
| Processors Included | 1 processor |
| Memory Type | HPE DDR5 Smart Memory 2x32GB |
| Included Drives | 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Storage Controller | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Network Controller | Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE |
| Expansion Slots | Maximum 3 PCIe Gen5 slots (x16 lanes each) Maximum 2 OCP 3.0 slots (x16 lanes each) |
| Accelerators | Up to 3 single-wide GPUs (rear) |
| Power Supply | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Cooling | Air cooling (standard), Closed-loop liquid cooling (optional), Direct liquid cooling (optional) |
| System Fans | 5x Standard Fans |
| Form Factor | 1U Rack |
| Security Features |
|
| Infrastructure Management |
|
| Warranty | 3/3/3: Three years parts, three years labor, three years on-site support |

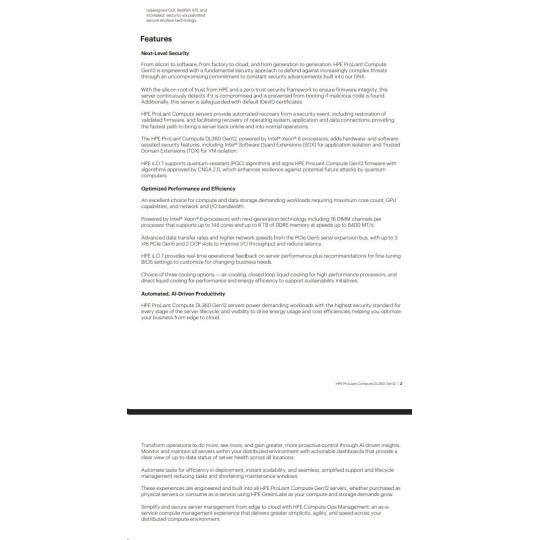

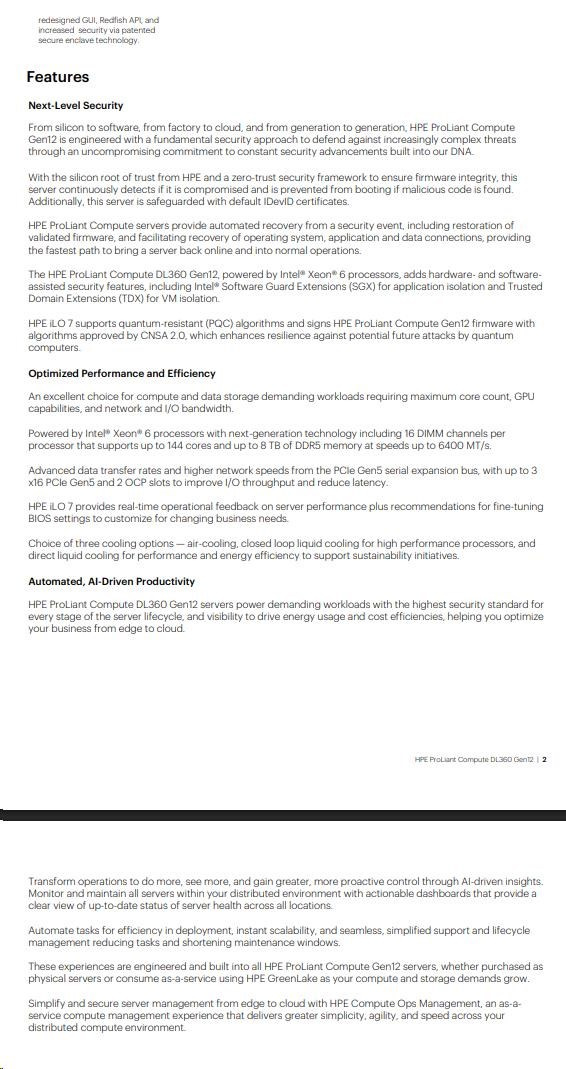

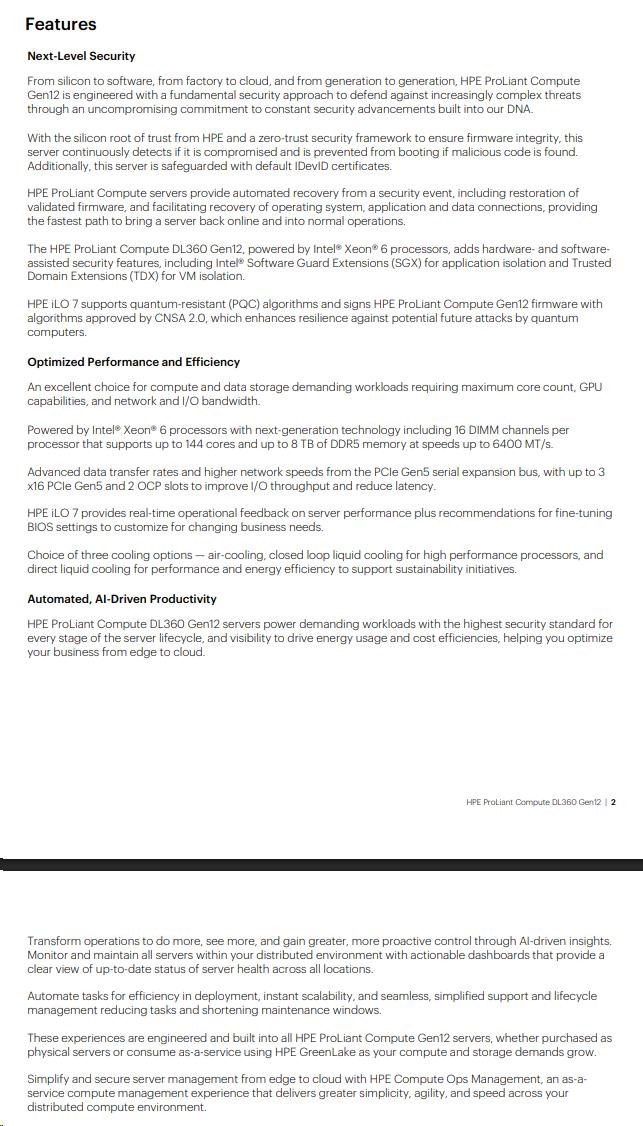

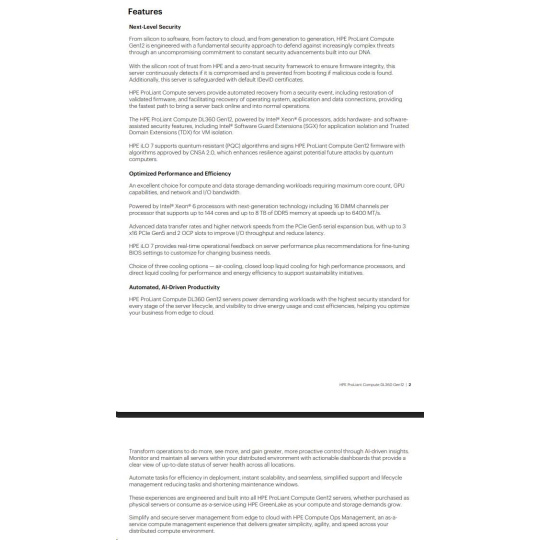

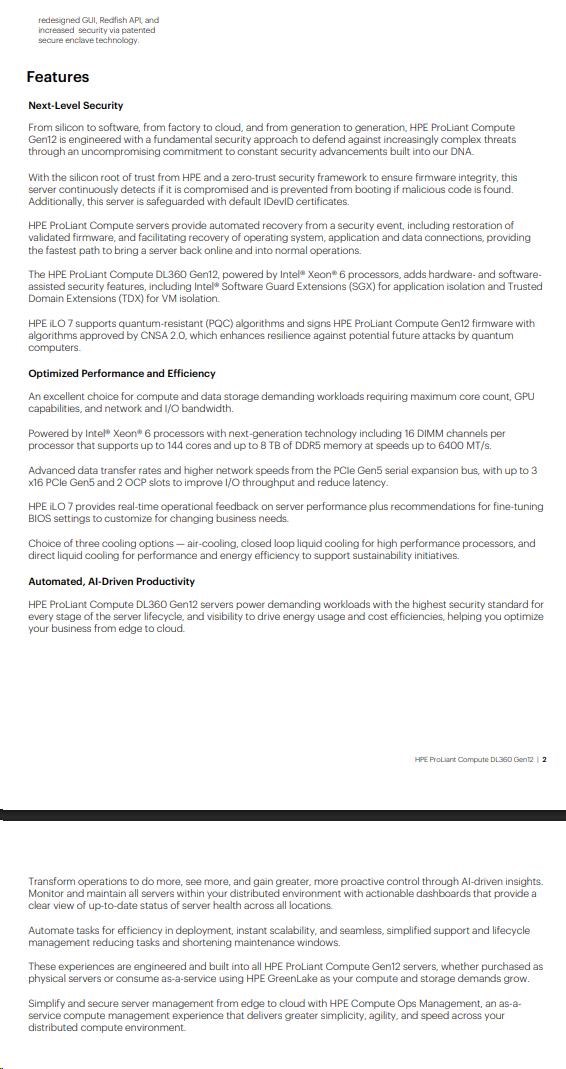

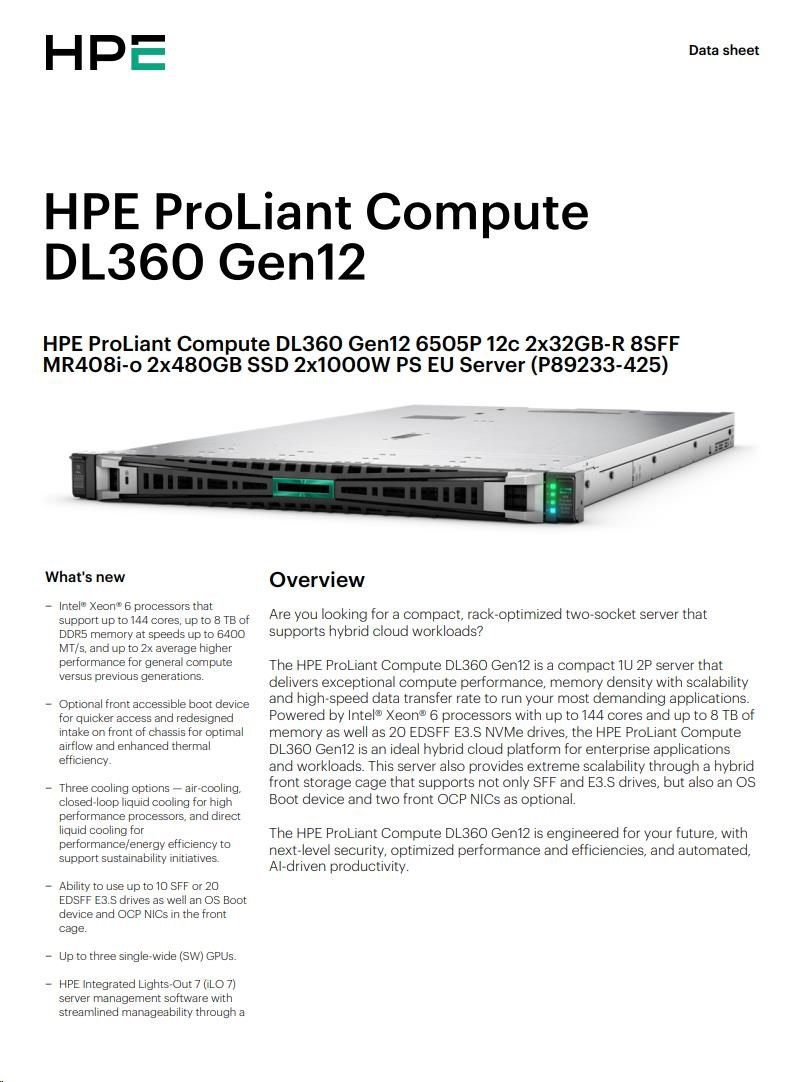

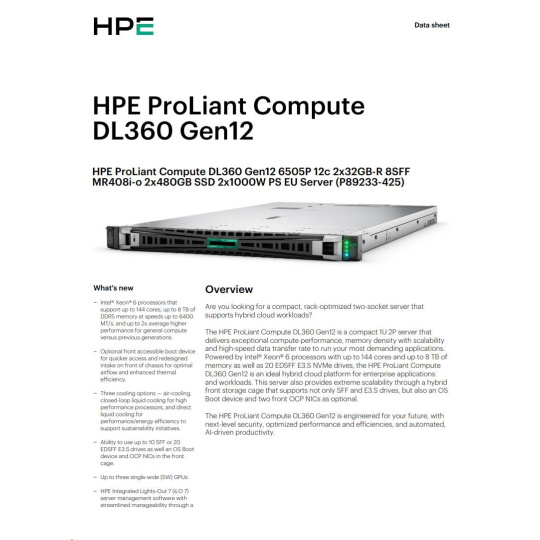

Overview
The HPE ProLiant Compute DL360 Gen12 is a compact 1U, two-socket server designed for hybrid cloud workloads. Powered by Intel® Xeon® 6 processors supporting up to 144 cores and up to 8 TB DDR5 memory (up to 6400 MT/s), it delivers exceptional compute performance, scalability, and high-speed data transfer.
Key Features
- Up to 144 cores with Intel® Xeon® 6 processors
- Up to 8 TB DDR5 memory
- Up to 20 EDSFF E3.S NVMe drives or 10 SFF drives
- Hybrid front storage cage with optional OS boot device
- Advanced PCIe Gen5 expansion
- HPE iLO 7 with enhanced security and Redfish API support
- AI-driven server lifecycle management
Services
- HPE Complete Care Service
- HPE Tech Care Service
- HPE Multivendor Services
- Lifecycle Services
- HPE Education Services
- HPE GreenLake Edge-to-Cloud Platform
ParametryPorovnání
RAID
1
RAID
5
Řada procesorů
Intel 8 Core Xeon
Provedení serveru
1U Rack
Provedení serveru
Rack
Počet instalovaných HDD
2
Redundantní zdroj
Ano
Redundantní větráčky
Ne
Maximální počet slotů PCIe
2
Hot-plug cage pro HDD
2.5" SFF
Výška serveru
1U
Model procesoru
Intel Xeon 6505P
Výrobce CPU
Intel
Velikost paměti RAM (GB)
64
Maximální paměťová kapacita serveru (GB)
256
Maximální počet procesorů
2
Maximální počet HDD v serveru
8
SSD Kapacita (GB)
480
