SenseVision USB 3.2 4K UHD Mini Docking Station
CSV-3104D The Club 3D USB 3.1 Gen 1 4K UHD Mini Docking Station design allows you to expand the outputs of your laptop or ultrabook so it can be used as a traditional desktop PC.

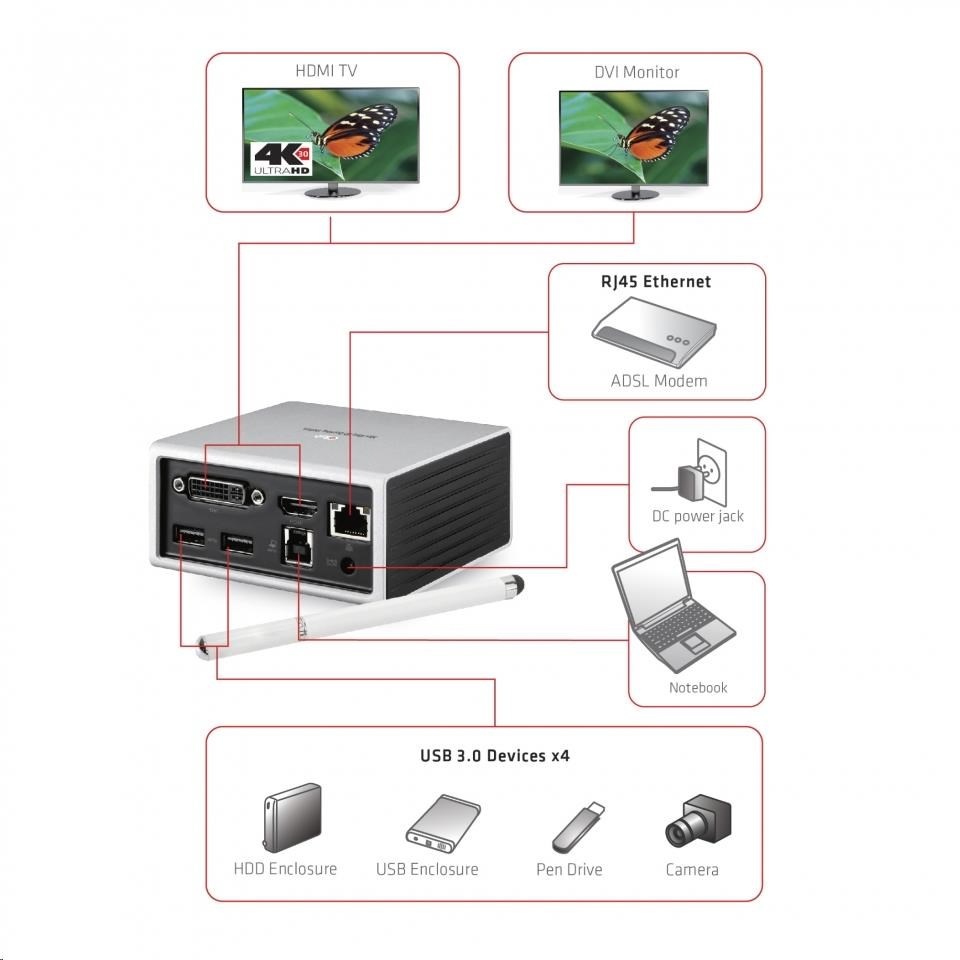

With the advanced DisplayLink DL-5900 chip inside, Club 3D’s USB 3.1 Gen 1 4K UHD Mini Docking Station is able to offer you the perfect solution to connect all your favorite USB devices (*4), as well as connect two external monitors via HDMI™ and a DVI-D Connector, in addition to an Ethernet network Connection it also offers an Audio/Microphone output all via a single USB cable.
Because of its convenient and compact design, the Club 3D USB 3.1 Gen 1 4K UHD Mini Docking Station is a versatile tool that provides you maximum functionality from your Small desktop replacement or mobile companion.
Design:
The Club 3D USB 3.1 Gen 1 4K UHD Mini Docking Station has a modern and minimalistic design and combines the functionality normally found in larger Docking Stations with a convenient, solid and highly portable casing. The miniature size makes it easy to take it with you wherever you go. Use it without external power for maximum mobility*. (*Limits functionality)
TECHNICAL SPECIFICATIONS
| Product Name | Club 3D USB 3.1 Gen 1 4K UHD Mini Docking Station |
| Product Series | SenseVision |
| Item Code | CSV-3104D |
| EAN | 8717249401261 |
| UPC Code | 854365005343 |
| Interface | USB 3.1 Gen 1 |
| Voltage | Operatin power: 14.43W Suspend mode: 1.95W |
| Output Configuration | USB 3.1 Gen 1 to HDMI™ / DVI / USB 3.1 Gen 1 x4 / Ethernet / Audio, Mic Combo jack |
| Package Contents | Club 3D USB 3.1 Gen 1 4K UHD Mini Docking Station CD driver USB Cable (1m) Power Adapter |
| Features | Compatible with USB 3.1 Gen 1 specification Supported max resolutions up to:? For Single Screen Setup: 3840 x 2160 @30Hz (HDMI™) For Dual Screen Setup: 2 x 2048x1152 (or 1920x1200) @60Hz Supports audio 2.1 channel Supports Gigabit Ethernet USB 3.1 Gen 1 SuperSpeed ports x 4, from which 2 with BC1.2 charging support |
| Minimum Requirements for PC | CPU: AMD or Intel Dual Core CPU 2GHz or higher processor clock. RAM: 2GB or higher USB port: 3.1 Gen 1 30MB of available disk space |
| Supported Operating Systems | WIN 10 / 8.1 |
