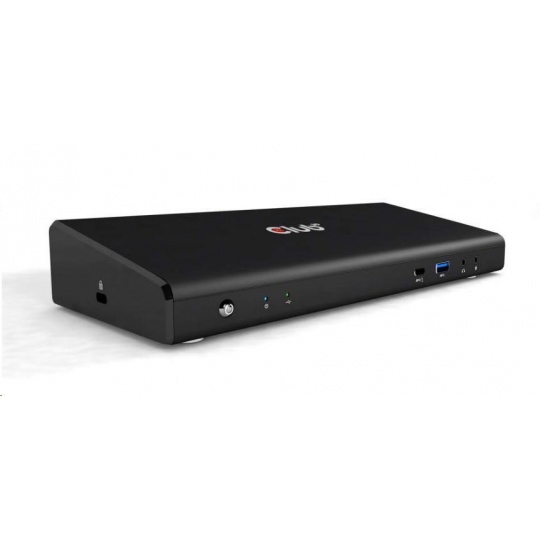

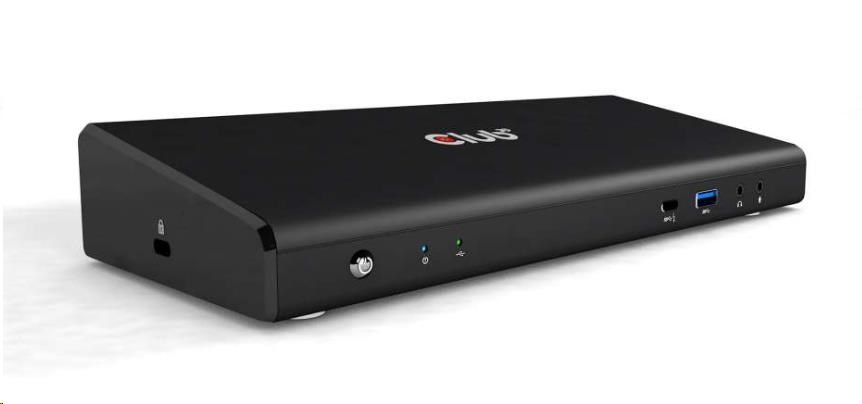

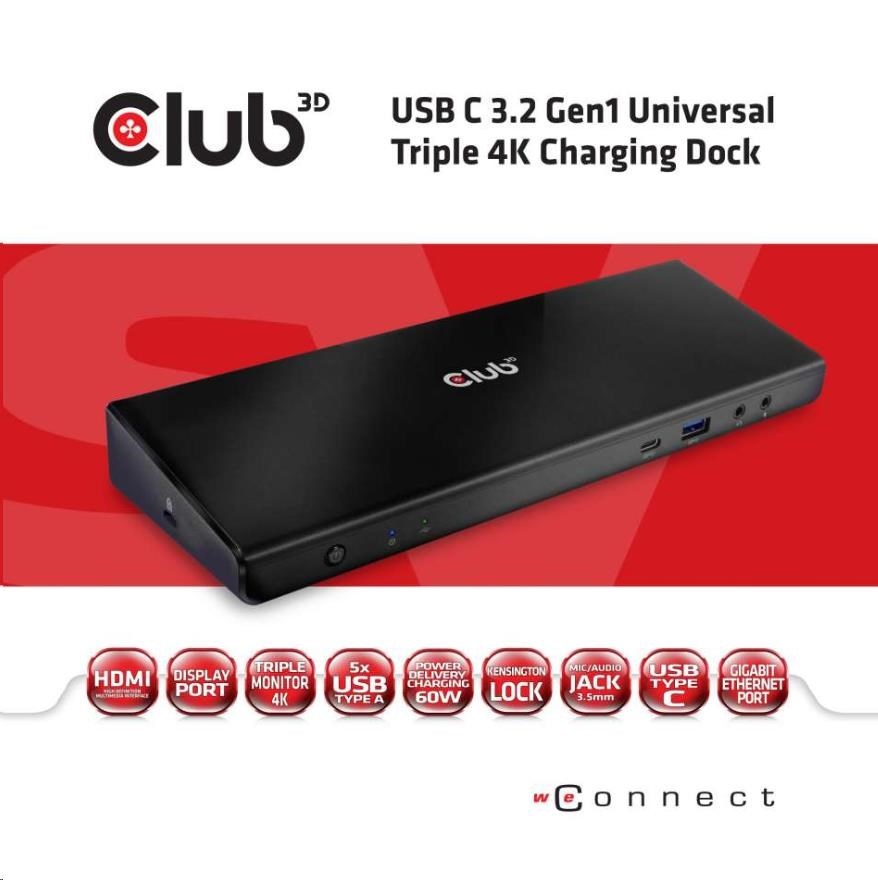

USB C 3.2 Gen1 Universal Triple 4K Charging Dock
CSV-1562 - The CSV-1562 is a USB C 3.2 Gen1 Universal Triple 4K Charging Docking Station. The Universal Charging Dock is designed to cater for your most versatile connectivity demands. The USB 3.2 Gen 1 interface supports up to 5 Gbps bandwidth, which enables you to enjoy super speed data transmission between your favourite USB peripherals and allows for up to three external 4K displays simultaneously in addition it offers a wired network connection as well as audio and micro¬pone output. By adopting Power Delivery charging technology, the upstream charging function through USB-C 3.2 Gen1 interface, you can charge a connected cell phone / tablet / laptop. Furthermore, the added Kensington Lock option allows you to secure your dock as well. All it needs is a free USB 3.2 Gen 1 port on your Laptop or Ultrabook to connect to the Universal Triple 4K Charging Docking Station via a single USB cable.
Charging
Laptops / UltraBooks / Tablets often have limited connectivity possibilities. By adopting PD Charging technology and upstream-charging function through USB Type C interface the Club3D USB Type C Charging Dock offers unique functionality. It will charge your Notebook up to 60Watts and thru the downstream port on the front you can charge your phone up to 7.5 Watt on the USB C connector.
TECHNICAL SPECIFICATIONS
| Product Name | USB C 3.2 Gen1 Universal Triple 4K Charging Dock |
| Product Series | Docking Station |
| Weight | 339g |
| Item Code | CSV-1562 |
| EAN | 8719214471293 |
| UPC Code | 841615101481 |
| Input | USB 3.2 Gen 1 Type-C male |

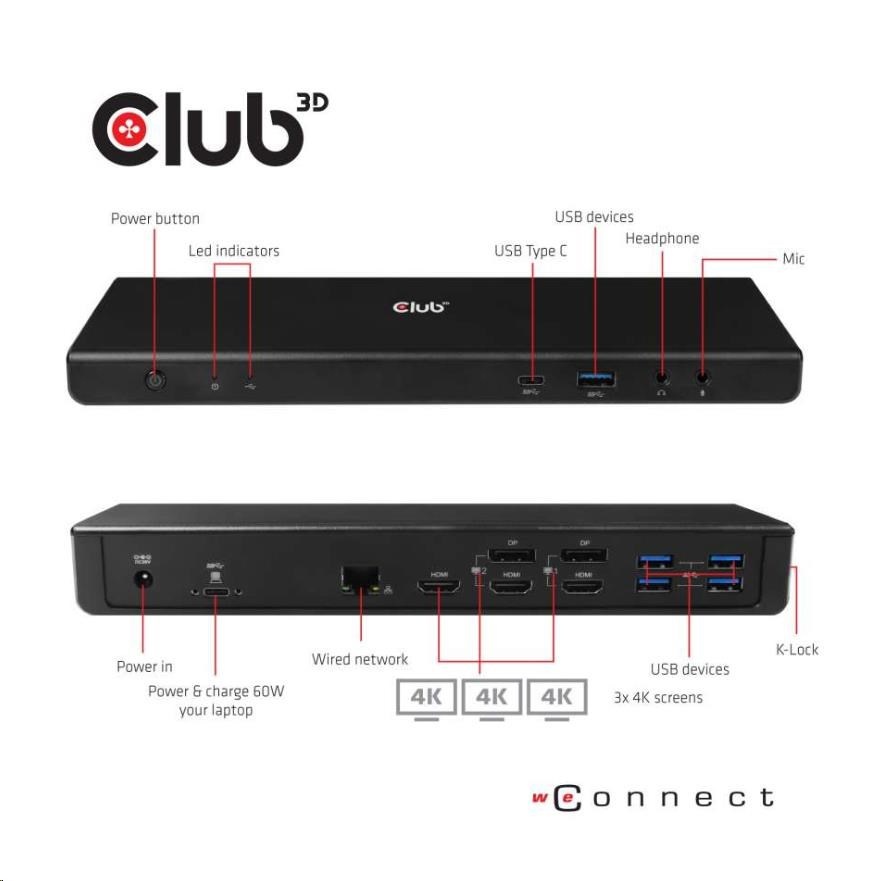

| Output | 5x USB 3.2 Gen 1 A female 1x USB3.2 Gen 1 Type-C port 1x Audio 2.1 channel 1x Gigabit Ethernet 2x DisplayPort 1.2 3x HDMI 2.0 1x Kensington Lock |
| Features | Downstream port - USB3.2 Gen 1 Type-A ports (5V/0.9A) x4 - USB3.2 Gen 1 Type-A port (Fast Charging) x1 - USB3.2 Gen 1 Type-C port x1 • Support audio 2.1 channel • Support Gigabit Ethernet • Support 5K (connect to 2 DP displays simultaneously) • Display 1: 4K60Hz via DP or HDMI • Display 2: 4K60Hz via DP or HDMI • Display 3: 4K30Hz via HDMI • Support PD Charging (for NB) - 20/15/12/9/5V@3A, up to 60W • Kensington Lock?• Power On/Off Button on the front |

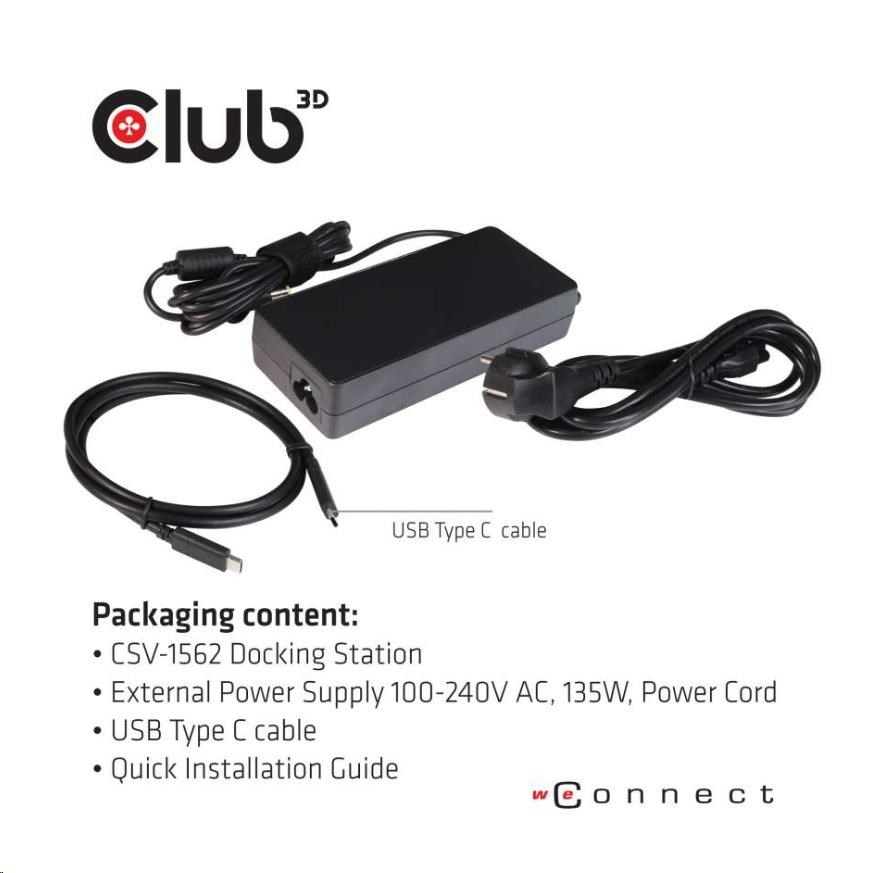

| Package Contents | Club 3D CSV-1562 USB C 3.2 Gen1 Universal Triple 4K Charging Dock External Power Supply 100-240V AC, 135W, Power Cord USB-C cable Installation CD Driver |

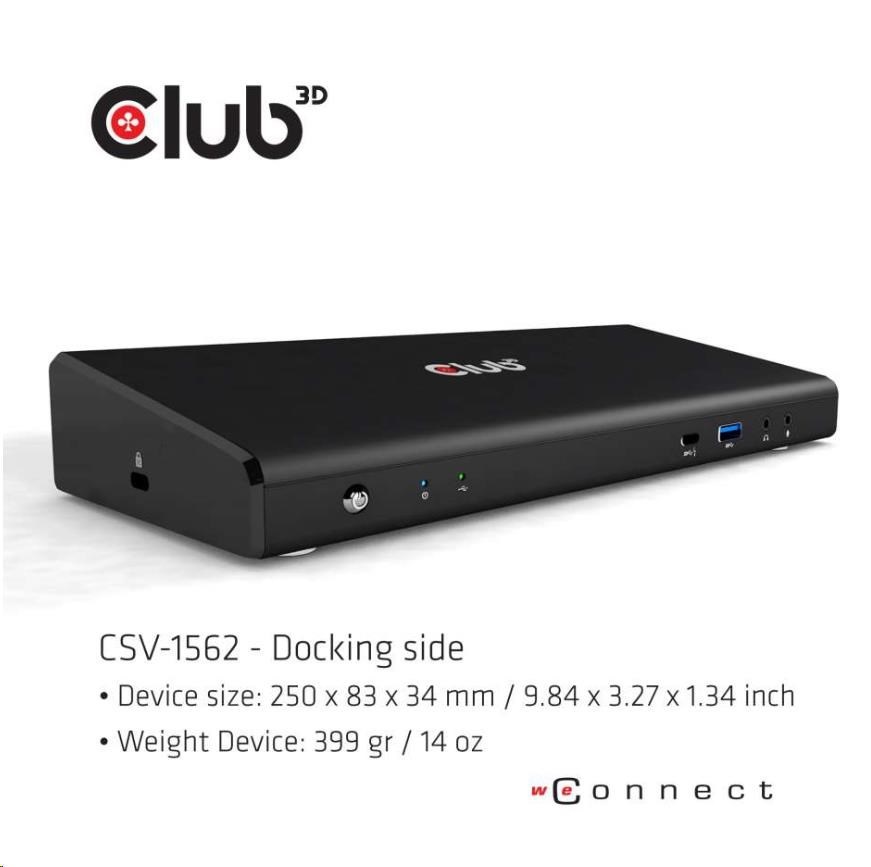

| Device size | 250 x 83 x 34 mm |
| Supported Operating Systems | Microsoft Windows® 10 Apple OS |
