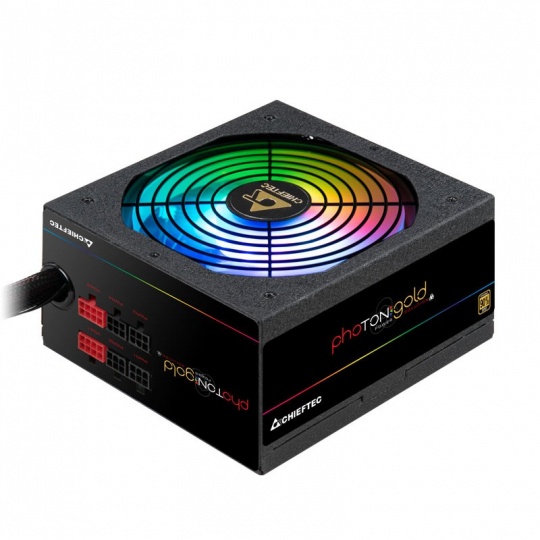

CHIEFTEC zdroj Photon Gold, GDP-750C-RGB, 750W, ATX-12V V.2.3/EPS-12V, PS-2, 14cm RGB fan, >90%
CHIEFTEC zdroj Photon Gold, GDP-750C-RGB, 750W, ATX-12V V.2.3/EPS-12V, PS-2, 14cm RGB fan, >90%
Supports all renowned RGB synchronization systems

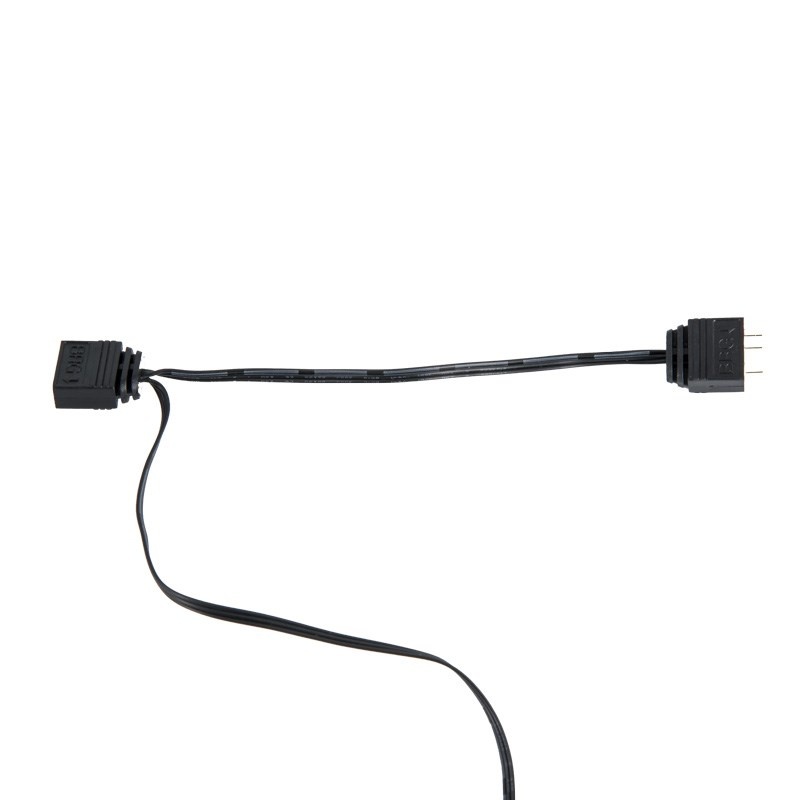

- Rainbow RGB fan with a +5V addressable LED connector
- High-Performance (90% Eff. @230V) RGB Gaming
The highly innovative Photon GOLD series are aimed at gamers and enthusiasts, looking for the ultimate in power, longevity, performance and of course, RGB lightning effects and all this at a highly affordable price. The +5V addressable LED connector of the PSU offers an extreme wide range of lightening modes and effects, supports all renowned RGB lightening synchronization systems such as ASUS™ AURA SYNC, MSI™ MYSTIC LIGHT SYNC, ASROCK™ POLYCHROME SYNC and GIGABYTE™ RGB FUSION.

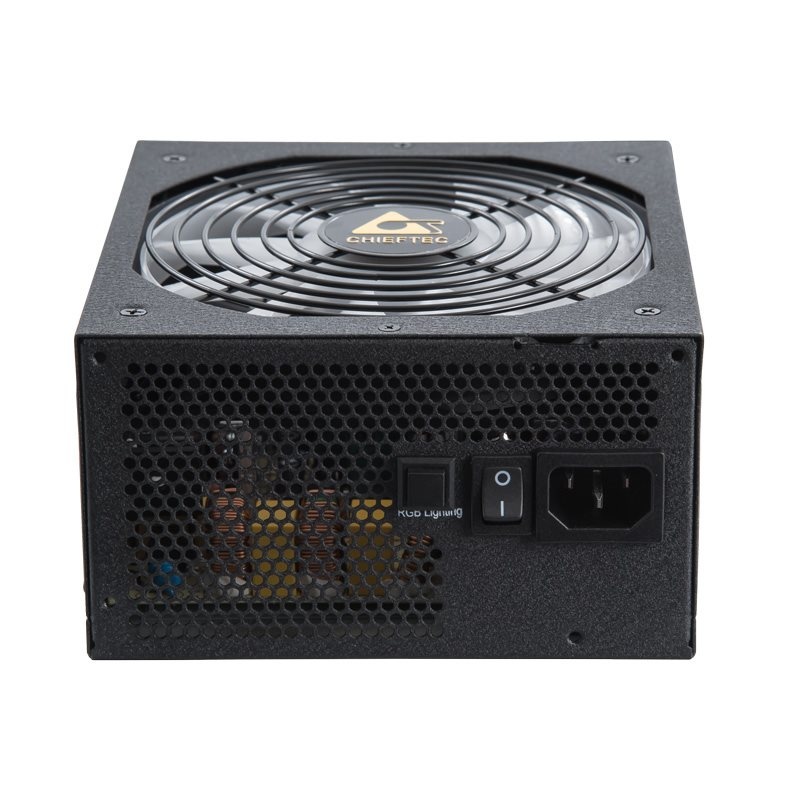

Photon GOLD series in addition provide a vast number of predefined and MBindependent lightening modes and effects, which are set via a button on the rear of the power supply while a minute toggle switch, equally located on the rear of the PSU allows the choice between the M/B RGB control (if available) or the integrated modes and effects. With its vast amount of extra-long cables and an efficiency of 90% @230V, the models of the Photon GOLD series stands out as a perfect RGB gaming solutions.
Performance
| Model | Photon Gold 750W |
| Article no. | GDP-750C-RGB |
| EAN code | 0753263075901 |
| Weight (without/with package) | 2,3 kg/ 2,6 kg |
| AC Input | 200-240V / 5A |
| Frequency | 47 - 63Hz |
| +5V | 22A |
| +3,3V | 22A |
| +5V & +3,3V combined | 120W |
| +12V 1 | 62A / 744W |
| +12V 2 | - |
| +12V 1 & +12V 2 combined | - |
| P.F. | >0,9 |
| -12V | 0,3A / 3,6W |
| +5VsB | 2,5A / 12,5W |
| Maximum Power | 750W |

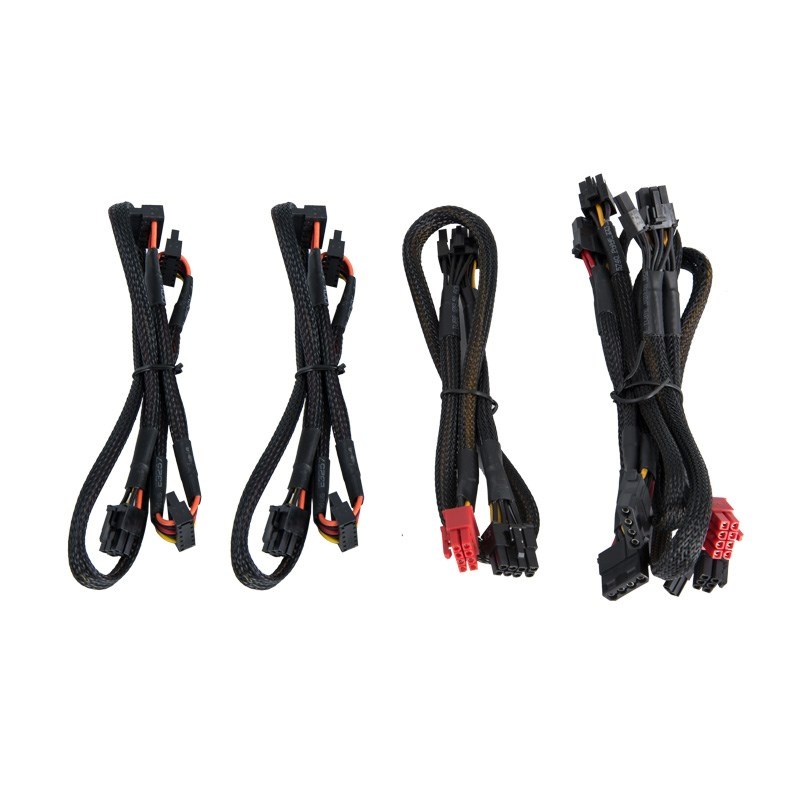

Connectors
| 20+4PIN ATX | 1 |
| 8 PIN EPS (4+4) | 1 |
| 8 PIN PCIe (6+2) | 4 |
| SATA | 8 |
| MOLEX | 3 |
| FLOPPY | 1 |
| +5V RGB LED | 1 |
Cable length
| 20+4PIN ATX | 550 |
| 8 PIN EPS (4+4) | 550 |
| 8 PIN PCIe (6+2) | 2x 550/150 |
| SATA | 2x 550/150/150/150 |
| MOLEX | 550/150/150/150 |
| FLOPPY | Molex |
| +5V RGB LED | 550 |
Features
| Specification | ATX 12V 2.3 |
| Form factor | PS II |
| Efficiency | >90% |
| Lightning modes | 14x dynamic modes integrated |
| Dimension (DxWxH) | 160 mm x 150 mm x 87 mm |
| PFC | Active PFC (0,9) (only 230V) |
| Fan | 140mm silent RGB Rainbow fan |
| Security |
|
| Warranty | 24 Months |
.
