HPE Aruba Networking AP-515 (RW) Dual Radio 4x4/2x2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A
Popis a parametry
HPE Aruba Networking AP-515 (RW) Dual Radio 4x4/2x2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A
Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A

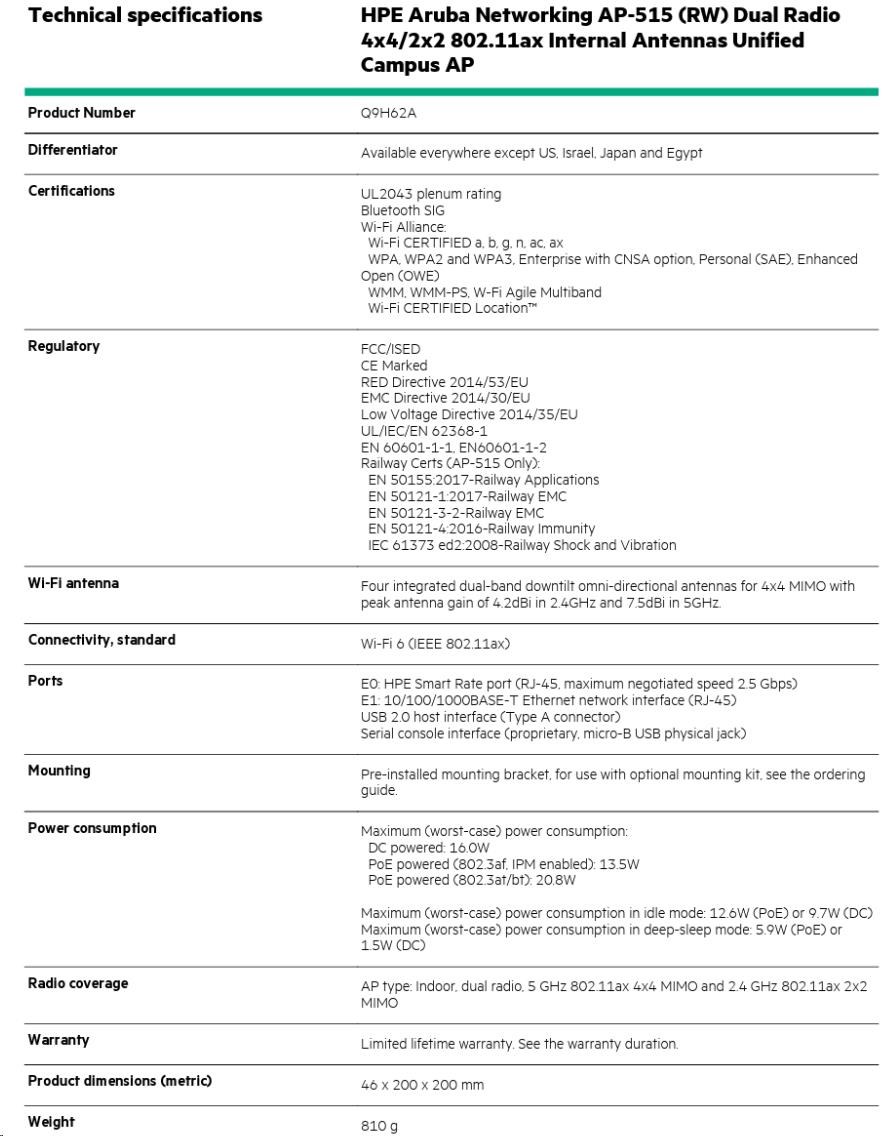

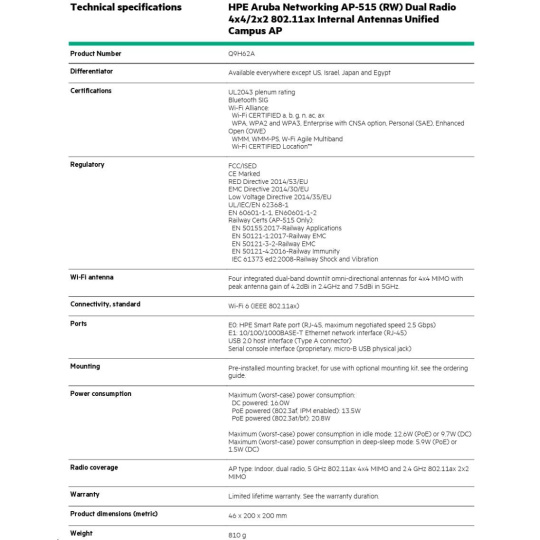

General
Product Number: Q9H62A
Differentiator: Available everywhere except US, Israel, Japan, and Egypt
Certifications
- UL2043 plenum rating
- Bluetooth SIG
- Wi-Fi Alliance:
- Wi-Fi CERTIFIED: a, b, g, n, ac, ax
- WPA, WPA2, WPA3 (Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE))
- WMM, WMM-PS, Wi-Fi Agile Multiband
- Wi-Fi CERTIFIED Location™
Regulatory
- FCC/ISED
- CE Marked
- RED Directive 2014/53/EU
- EMC Directive 2014/30/EU
- Low Voltage Directive 2014/35/EU
- UL/IEC/EN 62368-1
- EN 60601-1-1, EN 60601-1-2
Railway Certifications (AP-515 Only)
- EN 50155:2017 - Railway Applications
- EN 50121-1:2017 - Railway EMC
- EN 50121-3-2 - Railway EMC
- EN 50121-4:2016 - Railway Immunity
- IEC 61373 ed2:2008 - Railway Shock and Vibration
Wireless & Antennas
Standard: Wi-Fi 6 (IEEE 802.11ax)
Wi-Fi Antenna: Four integrated dual-band downtilt omni-directional antennas
- 4x4 MIMO
- 2.4 GHz peak gain: 4.2 dBi
- 5 GHz peak gain: 7.5 dBi
Ports
- E0: HPE Smart Rate (RJ-45), max 2.5 Gbps
- E1: 10/100/1000BASE-T Ethernet (RJ-45)
- USB 2.0 Host (Type A)
- Serial console (proprietary, micro-B USB)
Mounting
Pre-installed mounting bracket. Compatible with optional mounting kits (see ordering guide).
Power Consumption
- DC powered: Max 16.0W
- PoE (802.3af, IPM enabled): 13.5W
- PoE (802.3at/bt): 20.8W
- Idle mode: 12.6W (PoE), 9.7W (DC)
- Deep-sleep mode: 5.9W (PoE), 1.5W (DC)
Radio Coverage
Indoor dual radio:
- 5 GHz 802.11ax 4x4 MIMO
- 2.4 GHz 802.11ax 2x2 MIMO
Warranty
Limited lifetime warranty. See the warranty documentation for duration details.
Dimensions
Size: 46 x 200 x 200 mm
ParametryPorovnání
Typ aktivního prvku
AP (Access Point)
Frekvenční pásmo (GHz)
2,4 + 5 (Dual Band)
Připojení externí antény
Ne
Podporované standardy
802.11ax
USB port
Ano
Další vlastnosti
Podpora Wi-Fi Mesh
Slot na SIM kartu
Ano
Počet portů LAN
1
Použití
Vnitřní
Zabezpečení
WPA3
Typ antény
Vestavěná
Typy PoE
PoE - In + PoE - Out
Počet WAN portů
1
